576

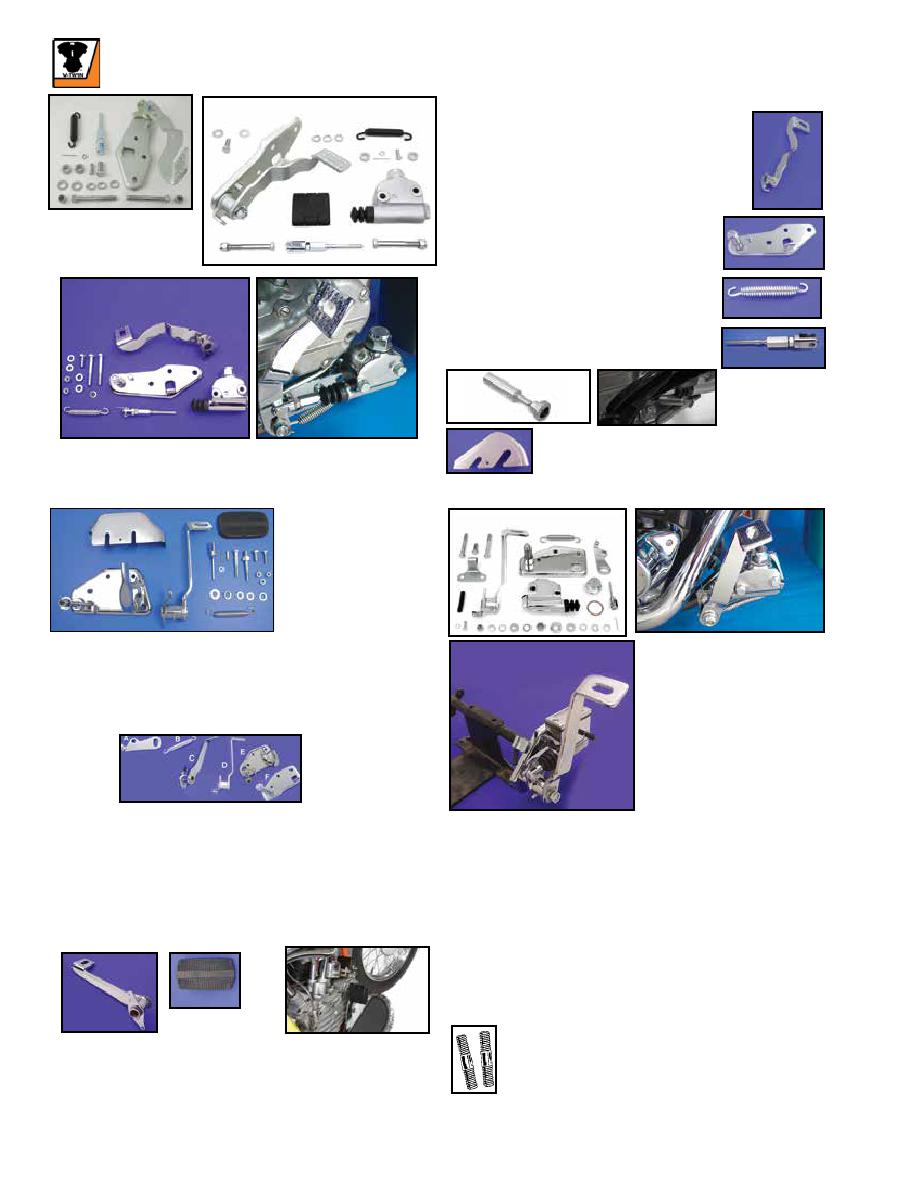

Original Forward Brake Control
Assemblies
 will equip all Big
Twins with hydraulic brakes and
powered by either Evolution or
1970-99 Shovelhead engines.
Available in either Wagner or
Kelsey Hayes styles, with or with-
out master cylinders. Footboards
can be fitted to our Wagner style
kits VT No. 22-0500, 22-0505
or 22-0506. Wagner styles use
41761-73 master cylinder, or Kelsey Hayes type 41576-79A, for
those wishing to utilize their existing master cylinder. Complete
assemblies include detailed instructions and diagram for installa-
tion. Display packaged.
VT No.  Type

Note
22-0500  Wagner
Without Master Cylinder
22-0505  Wagner
With Plain Master Cylinder
22-0506  Wagner
With Chrome Master Cylinder
22-0501  Kelsey Hayes  Without Master Cylinder
22-1017  Kelsey Hayes  With Chrome Master Cylinder
*Note: For kits 22-0500, 22-0505, 22-0506, 22-0501, and
22-1017, use Russell front line 23-8809 and rear line 23-8915
for disc brake models, and tee 23-0707.
Footpeg Mounting Studs fit through Wagner or Kelsey
Hayes master cylinders to mount foot pegs to these
forward assemblies. Stud side shown accepts that size
footpeg yoke.
VT No.
Type
37-8986
Kelsey Hayes Type ³⁄₈ — 24
37-8987
Wagner Type ¹⁄₂ — 20
VT No.
22-1017
Shown
22-0506
Installed
Forward Brake Kit
VT No.
Item
22-0300
Chrome Kit
23-1735
Chrome Master Cylinder
23-1772
Alloy Master Cylinder
27-0596
Rear Floor Board Bracket
37-6366
Master Cylinder Stud
22-0300
Chrome Hydraulic Brake Pedals and Backing Plates.
VT No.
#  OEM
Year
Item
23-0120  A  42411-70
1970-78 Big Twin
Stop
23-1742    50668-35
Spacers for above
Spacers
13-0147  B  42427-58
1958-84 FL
Spring
23-0103  D  42402-73A  1970-Early 79 FLH   Pedal
23-9192  C  42402-79
Late 1979-84 FLH
Pedal
23-0451  E  42480-79
1979-84 FLH
Plate
23-0102  F  42401-73A  1970-Early 79 FLH  Plate
Chrome Forward Brake Pedal allows driver better access to
pedal from footboard. Fits 1979-84 FLH.
VT No.
Item
23-0351
Pedal
28-0313
Pad
28-0457 Pad
23-0351
28-0313
28-0457
1958-69 Brake
VT No.
Master Cylinder
22-0747
Without, Zinc
22-0401
Without, Chrome
22-0403
With Chrome
22-0402
With Painted
22-0781
With, Zinc & Rubber Pedal Pad
1958-69 Big Twin Rear Brake Components.
VT No.
Item
Finish
23-0100 Pedal
Chrome
23-0101
Pedal Plate  Chrome
23-1742
Spacers Zinc
13-0147
Spring Chrome
13-0175 Spring
Chrome
13-0146 Spring
Parkerized
23-0115 Plunger  Chrome
23-0192
Plunger
Zinc
16-0432 Tool
Locking
22-0403
22-0403
Installed
23-0101
23-0100
13-0147
23-0115
1958-69 Hydraulic Brake Kit includes all parts illustrated as
replacement for flat side engine or for use on cone motors
with an outside frame pipe. Available with or without cast iron
Wagner style master cylinder
Master Cylinder Cover
VT No. 42-0315
22-0506
22-0781
22-0747
16-0432
Brake Kit for 1979-84
FLH includes chrome
pedal, chrome plate with
front footboard bracket,
plunger, spring and stud.
Order master cylinder
separately.
